Location
Chicago, IL
Timeline
2023
Client
Chicago Transit Authority
PROJECT OVERVIEW
About This Project
John Burns is the Prime Contractor for work on the Kedvale Substation, Edmunds Substation and Sacramento Substation in the City of Chicago for CTA.
Markets
Power & Utility
Need a Similar Solution?
Contact our Illinois team to discuss your infrastructure project requirements and get expert guidance.
Illinois
Scope Of Work

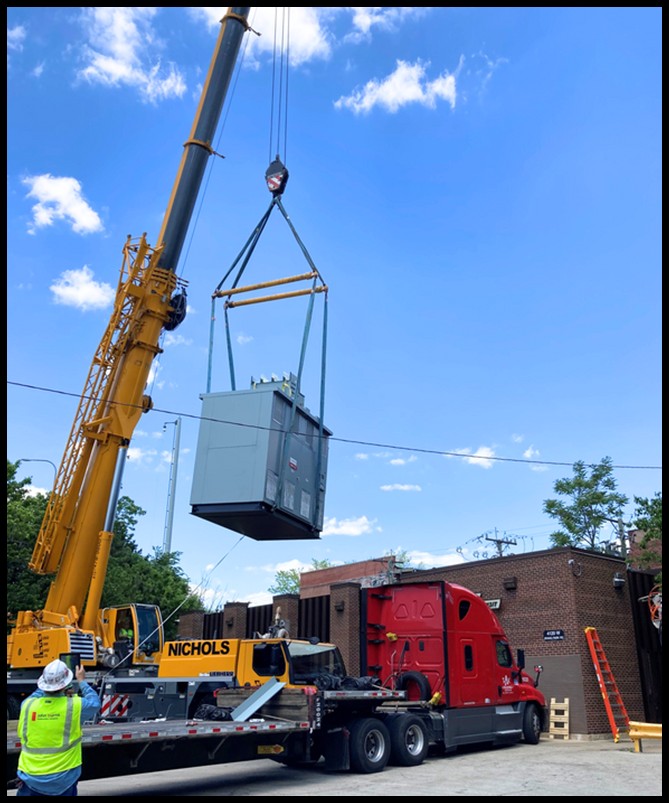

Kedvale Substation
- Isolate, disconnect, remove and legally dispose of 3 oil-filled rectifier transformers.
- Furnish, install and connect three 3 new 2500 kva dry type rectifier transformers.
- Remove three 3 existing rectifiers, furnish and install three 3 new rectifiers.
- Remove seven 7 existing AC feeder breakers, furnish and install seven 7 new AC feeder breakers.
Edmunds Substation
- Isolate, disconnect, remove and legally dispose of (3) oil-filled rectifier transformers.
- Furnish, install and connect three 3 new 2500 kva dry type rectifier transformers.
- Remove three 3 existing rectifiers, furnish and install three (3) new rectifiers.
- Remove seven 7 existing AC feeder breakers, furnish and install seven 7 new AC feeder breakers.
Sacramento Substation
- Remove seven 7 existing AC feeder breakers.
- Furnish and install seven 7 new AC feeder breakers.
